BB Cervical Advanced Cervical Retractor System Components

An advanced cervical retractor system designed for anterior or posterior cervical procedures, with optional microdiscectomy accessories for expanded use.

BB Cervical Advanced Cervical Retractor System Components

​

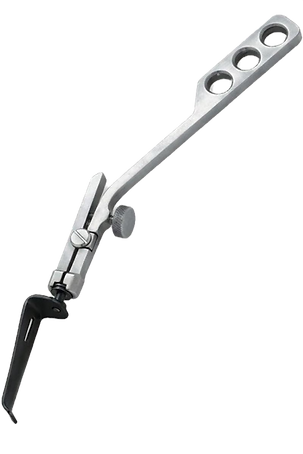

  • BBSS-01 Retractor Frame Left  Max Opening: 6.5 cm — Arm Length: 8 cm — Material: Stainless steel

  • BBSS-02 Retractor Frame Offset  Max Opening: 8 cm — Arm Length: 8 cm — Material: Stainless steel (offset)

  • BBSS-00 Retractor Frame Right  Max Opening: 6.5 cm — Arm Length: 8 cm — Material: Stainless steel

MICRODISCECTOMY ATTACHMENT SET (for BB Cervical Retractor)

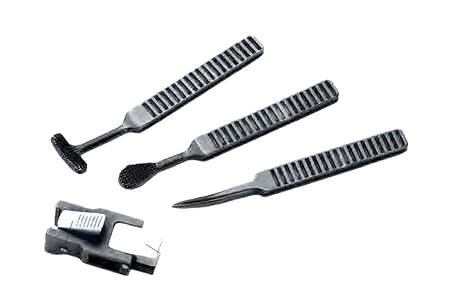

  • BBSS-24 Microdiscectomy Attachment Set (Set)
    Consists of:

    • BBSS-25 Microdiscectomy Adaptor

    • BBSS-26 Spike Blade — 70 mm

    • BBSS-27 T-Shape Blade — 70 mm

    • BBSS-28 Inner Spine Ligament Blade — 70 mm

    • BBSS-29 Pronged Blade — 22 x 85 mm

An advanced cervical retractor system designed for anterior or posterior cervical procedures, with optional microdiscectomy accessories for expanded use.




BBSS-01

BBSS-02


TWO-LEVEL BLADES (27 mm width)
Two-Level Pronged Blades, Stainless Steel

  • BBSS-18 Depth: 40 mm

  • BBSS-19 Depth: 47 mm

  • BBSS-20 Depth: 55 mm

Two-Level Blunt Blades, Stainless Steel

  • BBSS-21 Depth: 40 mm

  • BBSS-22 Depth: 47 mm

  • BBSS-23 Depth: 55 mm

SINGLE-LEVEL BLADES (22 mm width)
Pronged Blades, Stainless Steel

  • BBSS-04 Depth: 34 mm

  • BBSS-05 Depth: 40 mm

  • BBSS-06 Depth: 45 mm

  • BBSS-07 Depth: 50 mm

  • BBSS-08 Depth: 55 mm

  • BBSS-09 Depth: 60 mm

  • BBSS-10 Depth: 70 mm

Blunt Blades, Stainless Steel

  • BBSS-11 Depth: 34 mm

  • BBSS-12 Depth: 40 mm

  • BBSS-13 Depth: 45 mm

  • BBSS-14 Depth: 50 mm

  • BBSS-15 Depth: 55 mm

  • BBSS-16 Depth: 60 mm

  • BBSS-17 Depth: 70 mm

  • BBSS-29 Depth : 85mm

System features

  • Multi-jointed retractor arms for flexible positioning

  • Low-reflection dark finish to reduce glare under OR lighting

  • Broad selection of blade styles and sizes

  • Suitable for single-level or multi-level exposure

Blades

  • Blade geometry is shaped to help prevent the blade from backing out of the surgical field

  • Wider multi-level blades include an additional distal contour to better follow vertebral anatomy and support visualization

Blade Inserter Clamp

  • Spring-loaded jaws help capture and seat blades quickly

  • Clamp profile is designed to minimize obstruction in the operative field

  • Clamp-and-blade assembly can be used for manual retraction when needed

  • Clamps can be removed efficiently once the retractor arms are secured on the blades

Lumbar microdiscectomy attachments

This accessory kit allows the cervical retractor platform to be configured for lumbar microdiscectomy applications.

BBST-99 Complete System with Tray
