Stark Surgical Instruments

REVOLVER PRO – ROTATING RONGEUR

Innovation you can feel. Revolver Pro reimagines the rongeur around surgeon biomechanics. A low-profile Lock-Release gives one-handed access to a true 360° rotating shaft—reorient the jaw without breaking posture or grip. The result is faster, cleaner motions with fewer micro-adjustments and less hand strain.

​

KEY FEATURES
• 360° bi-directional rotation on demand – reorient the jaw while maintaining working position​
• One-handed Lock-Release – low-profile mechanism provides instant tactile feedback​
• Ergonomic leverage – balanced geometry maximizes control with minimal hand strain

• Modular design – shaft and jaw assemblies detach in seconds for sterilization or repair

• Lightweight strength – titanium hardware and anodized alloy chassis optimize strength-to-weight ratio​



LOCK-RELEASE + 360° ROTATING SHAFT
A cam-linked Lock-Release frees, rotates, and re-locks the jaw using one hand. The design preserves the primary squeeze axis—no awkward wrist rotation or re-gripping.

​

CRAFTSMANSHIP
Every Revolver is hand-crafted and bench-tuned by skilled technicians. We match tolerances across sub-assemblies, polish bearing surfaces, and verify rotational torque and spring response. Every shaft is hand sharpened under scope before it leaves our facility.



ABOUT THE REVOLVER SHAFT
The Revolver Shaft Assembly is engineered for simplicity, strength, and serviceability. Its modular construction allows the shaft to be easily disassembled for thorough cleaning and maintenance, ensuring long-term reliability and consistent performance.

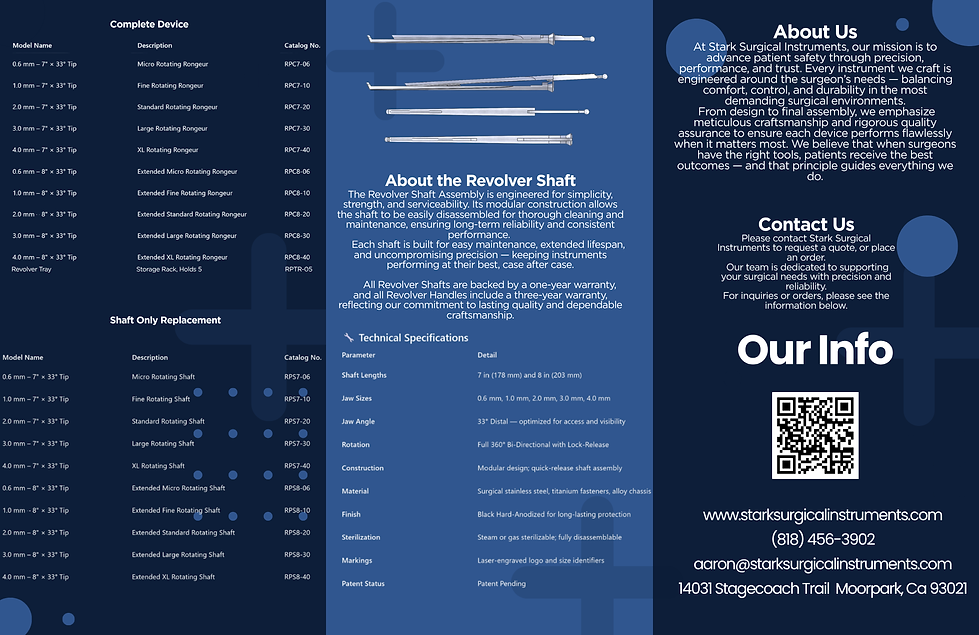

Revolver Brochure



WARRANTY
All Revolver shafts are backed by a one-year warranty, and all Revolver handles include a three-year warranty.

​

MODELS + SKUS (COMPLETE DEVICE)
Model Name | Description | Catalog No.
0.6 mm – 7" × 33° Tip | Micro Rotating Rongeur | RPC7-06
1.0 mm – 7" × 33° Tip | Fine Rotating Rongeur | RPC7-10
2.0 mm – 7" × 33° Tip | Standard Rotating Rongeur | RPC7-20
3.0 mm – 7" × 33° Tip | Large Rotating Rongeur | RPC7-30
4.0 mm – 7" × 33° Tip | XL Rotating Rongeur | RPC7-40
0.6 mm – 8" × 33° Tip | Extended Micro Rotating Rongeur | RPC8-06
1.0 mm – 8" × 33° Tip | Extended Fine Rotating Rongeur | RPC8-10
2.0 mm – 8" × 33° Tip | Extended Standard Rotating Rongeur | RPC8-20
3.0 mm – 8" × 33° Tip | Extended Large Rotating Rongeur | RPC8-30
4.0 mm – 8" × 33° Tip | Extended XL Rotating Rongeur | RPC8-40

​

SHAFT ONLY REPLACEMENT SKUS
Model Name | Description | Catalog No.
0.6 mm – 7" × 33° Tip | Micro Rotating Shaft | RPS7-06
1.0 mm – 7" × 33° Tip | Fine Rotating Shaft | RPS7-10
2.0 mm – 7" × 33° Tip | Standard Rotating Shaft | RPS7-20
3.0 mm – 7" × 33° Tip | Large Rotating Shaft | RPS7-30
4.0 mm – 7" × 33° Tip | XL Rotating Shaft | RPS7-40
0.6 mm – 8" × 33° Tip | Extended Micro Rotating Shaft | RPS8-06
1.0 mm – 8" × 33° Tip | Extended Fine Rotating Shaft | RPS8-10
2.0 mm – 8" × 33° Tip | Extended Standard Rotating Shaft | RPS8-20
3.0 mm – 8" × 33° Tip | Extended Large Rotating Shaft | RPS8-30
4.0 mm – 8" × 33° Tip | Extended XL Rotating Shaft | RPS8-40

​

ACCESSORIES

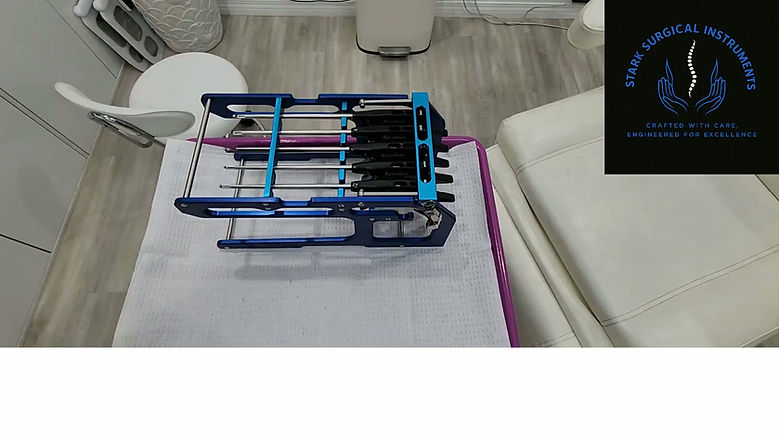

Revolver Tray Storage Rack (Holds 5) | RPTR-05

​

ORDER / QUOTES
Email: info@starksurgicalinstruments.com

​

Phone: (818) 456-3902

​
